painlessmesh::plugin::PackageHandler< T > Class Template Reference

#include <plugin.hpp>

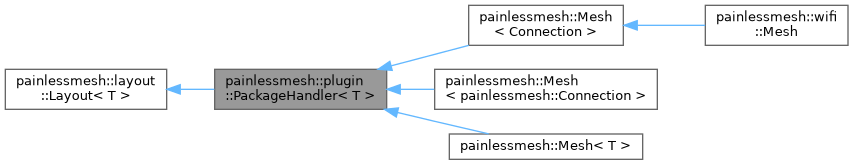

Inheritance diagram for painlessmesh::plugin::PackageHandler< T >:

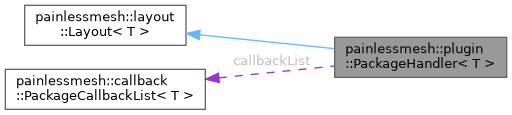

Collaboration diagram for painlessmesh::plugin::PackageHandler< T >:

Public Member Functions
void	stop (Scheduler *scheduler=nullptr)
	~PackageHandler ()
bool	sendPackage (const protocol::PackageInterface *pkg)
void	onPackage (int type, std::function< bool(protocol::Variant &)> function)
std::shared_ptr< Task >	addTask (Scheduler &scheduler, unsigned long aInterval, long aIterations, std::function< void()> aCallback)
std::shared_ptr< Task >	addTask (Scheduler &scheduler, std::function< void()> aCallback)
Public Member Functions inherited from painlessmesh::layout::Layout< T >
uint32_t	getNodeId () const
bool	isRoot () const
protocol::NodeTree	asNodeTree ()

Protected Member Functions
void	reclaimQuarantinedTasks ()

Protected Attributes
callback::MeshPackageCallbackList< T >	callbackList
std::list< std::shared_ptr< Task > >	taskList = {}
std::list< std::pair< Scheduler *, std::shared_ptr< Task > > >	quarantinedTasks
Protected Attributes inherited from painlessmesh::layout::Layout< T >
uint32_t	nodeId = 0
bool	root = false
bool	hasTimeAuthority = false

Additional Inherited Members
Public Attributes inherited from painlessmesh::layout::Layout< T >
size_t	stability = 0
std::list< std::shared_ptr< T > >	subs

Detailed Description

template<typename T>
class painlessmesh::plugin::PackageHandler< T >

Handle different plugins

Responsible for

• having a list of plugin types
• the functions defined to handle the different plugin types
• tasks?

Constructor & Destructor Documentation

~PackageHandler()

template<typename T >

painlessmesh::plugin::PackageHandler< T >::~PackageHandler ( )

inline

Member Function Documentation

addTask() [1/2]

template<typename T >

std::shared_ptr< Task > painlessmesh::plugin::PackageHandler< T >::addTask ( Scheduler &  scheduler, std::function< void()>  aCallback  )

inline

addTask() [2/2]

template<typename T >

std::shared_ptr< Task > painlessmesh::plugin::PackageHandler< T >::addTask ( Scheduler &  scheduler, unsigned long  aInterval, long  aIterations, std::function< void()>  aCallback  )

inline

Add a task to the scheduler

The task will be stored in a list and a shared_ptr to the task will be returned. If the task is anonymous (i.e. no shared_ptr to it is held anywhere else) and disabled then it will be reused when a new task is added.

onPackage()

template<typename T >

void painlessmesh::plugin::PackageHandler< T >::onPackage ( int  type, std::function< bool(protocol::Variant &)>  function  )

inline

reclaimQuarantinedTasks()

template<typename T >

void painlessmesh::plugin::PackageHandler< T >::reclaimQuarantinedTasks ( )

inlineprotected

sendPackage()

template<typename T >

bool painlessmesh::plugin::PackageHandler< T >::sendPackage ( const protocol::PackageInterface *  pkg )

inline

stop()

template<typename T >

void painlessmesh::plugin::PackageHandler< T >::stop ( Scheduler *  scheduler = nullptr )

inline

Member Data Documentation

callbackList

template<typename T >

callback::MeshPackageCallbackList<T> painlessmesh::plugin::PackageHandler< T >::callbackList

protected

quarantinedTasks

template<typename T >

std::list<std::pair<Scheduler*, std::shared_ptr<Task> > > painlessmesh::plugin::PackageHandler< T >::quarantinedTasks

protected

Initial value:

=
      {}

taskList

template<typename T >

std::list<std::shared_ptr<Task> > painlessmesh::plugin::PackageHandler< T >::taskList = {}

protected

---

The documentation for this class was generated from the following file:

• src/painlessmesh/plugin.hpp
