painlessmesh::layout::Layout< T > Class Template Reference

#include <layout.hpp>

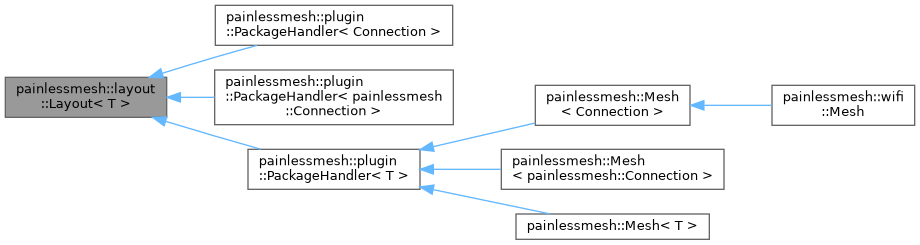

Inheritance diagram for painlessmesh::layout::Layout< T >:

Public Member Functions
uint32_t	getNodeId () const
bool	isRoot () const
protocol::NodeTree	asNodeTree ()

Public Attributes
size_t	stability = 0
std::list< std::shared_ptr< T > >	subs

Protected Attributes
uint32_t	nodeId = 0
bool	root = false
bool	hasTimeAuthority = false

Member Function Documentation

asNodeTree()

template<class T >

protocol::NodeTree painlessmesh::layout::Layout< T >::asNodeTree ( )

inline

getNodeId()

template<class T >

uint32_t painlessmesh::layout::Layout< T >::getNodeId ( ) const

inline

Return the nodeId of the node that we are running on.

On the ESP hardware nodeId is uniquely calculated from the MAC address of the node.

isRoot()

template<class T >

bool painlessmesh::layout::Layout< T >::isRoot ( ) const

inline

Check whether this node is a root node.

Member Data Documentation

hasTimeAuthority

template<class T >

bool painlessmesh::layout::Layout< T >::hasTimeAuthority = false

protected

nodeId

template<class T >

uint32_t painlessmesh::layout::Layout< T >::nodeId = 0

protected

root

template<class T >

bool painlessmesh::layout::Layout< T >::root = false

protected

stability

template<class T >

size_t painlessmesh::layout::Layout< T >::stability = 0

subs

template<class T >

std::list<std::shared_ptr<T> > painlessmesh::layout::Layout< T >::subs

---

The documentation for this class was generated from the following file:

• src/painlessmesh/layout.hpp
