painlessmesh::Connection Class Reference

#include <mesh.hpp>

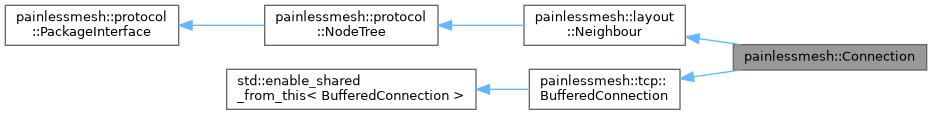

Inheritance diagram for painlessmesh::Connection:

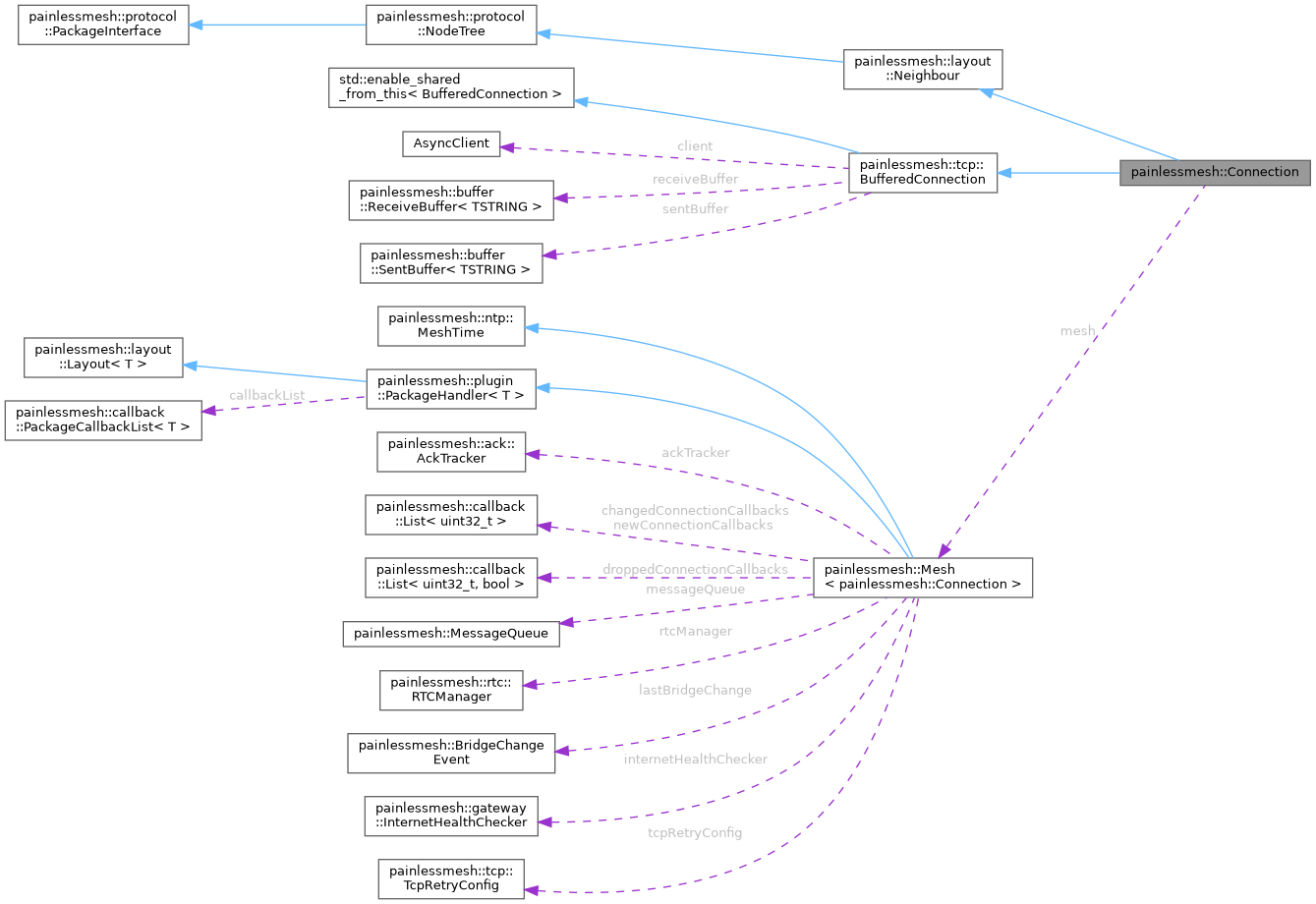

Collaboration diagram for painlessmesh::Connection:

Public Member Functions
	Connection (AsyncClient *client, Mesh< painlessmesh::Connection > *mesh, bool station)
void	initTasks ()
bool	addMessage (const TSTRING &msg, bool priority=false)
bool	addMessageWithPriority (const TSTRING &msg, uint8_t priorityLevel)
void	onMessageReceived (size_t bytes=0)
void	onMessageSent (bool success, size_t bytes=0)
void	recordLatency (uint32_t latencyMs)
int	getLatency ()
int	getQuality ()
int	getRSSI ()
Public Member Functions inherited from painlessmesh::layout::Neighbour
bool	validSubs (protocol::NodeTree tree)
bool	updateSubs (protocol::NodeTree tree)
protocol::NodeSyncRequest	request (NodeTree &&layout)
protocol::NodeSyncReply	reply (NodeTree &&layout)
Public Member Functions inherited from painlessmesh::protocol::NodeTree
	NodeTree ()
virtual	~NodeTree ()=default
	NodeTree (uint32_t nodeID, bool iAmRoot, bool timeAuthority=false)
	NodeTree (JsonObject jsonObj)
JsonObject	addTo (JsonObject &&jsonObj) const
bool	operator== (const NodeTree &b) const
bool	operator!= (const NodeTree &b) const
TSTRING	toString (bool pretty=false)
size_t	jsonObjectSize () const
void	clear ()
Public Member Functions inherited from painlessmesh::protocol::PackageInterface
virtual	~PackageInterface ()=default
Public Member Functions inherited from painlessmesh::tcp::BufferedConnection
	BufferedConnection (AsyncClient *client)
	~BufferedConnection ()
void	initialize (Scheduler *scheduler)
void	close ()
bool	write (const TSTRING &data, bool priority=false)
bool	writeWithPriority (const TSTRING &data, uint8_t priorityLevel)
void	onDisconnect (std::function< void()> callback)
void	onReceive (std::function< void(TSTRING)> callback)
bool	connected ()

Public Attributes
Mesh< Connection > *	mesh
bool	station = true
bool	newConnection = true
Task	timeSyncTask
Task	nodeSyncTask
Task	timeOutTask
uint32_t	messagesRx = 0
uint32_t	messagesTx = 0
uint32_t	messagesDropped = 0
uint32_t	timeLastReceived = 0
uint64_t	bytesRx = 0
uint64_t	bytesTx = 0
std::vector< uint32_t >	latencySamples
Public Attributes inherited from painlessmesh::layout::Neighbour
uint32_t	presented = 0
Public Attributes inherited from painlessmesh::protocol::NodeTree
uint32_t	nodeId = 0
bool	root = false
bool	hasTimeAuthority = false
std::list< NodeTree >	subs

Static Public Attributes
static const size_t	MAX_LATENCY_SAMPLES = 10

Protected Member Functions
std::shared_ptr< Connection >	shared_from_this ()
Protected Member Functions inherited from painlessmesh::tcp::BufferedConnection
bool	writeNext ()
template<typename T >
std::shared_ptr< T >	shared_from (T *derived)

Additional Inherited Members
Protected Attributes inherited from painlessmesh::tcp::BufferedConnection
bool	mConnected = true
AsyncClient *	client
Scheduler *	mScheduler = nullptr
std::function< void(TSTRING)>	receiveCallback
std::function< void()>	disconnectCallback
painlessmesh::buffer::ReceiveBuffer< TSTRING >	receiveBuffer
painlessmesh::buffer::SentBuffer< TSTRING >	sentBuffer
Task	sentBufferTask
Task	readBufferTask

Constructor & Destructor Documentation

Connection()

painlessmesh::Connection::Connection ( AsyncClient *  client, Mesh< painlessmesh::Connection > *  mesh, bool  station  )

inline

Member Function Documentation

addMessage()

bool painlessmesh::Connection::addMessage ( const TSTRING &  msg, bool  priority = false  )

inline

addMessageWithPriority()

bool painlessmesh::Connection::addMessageWithPriority ( const TSTRING &  msg, uint8_t  priorityLevel  )

inline

Add message with explicit priority level (0-3)

Parameters

msg	The message to send
priorityLevel	Priority level: 0=CRITICAL, 1=HIGH, 2=NORMAL, 3=LOW

getLatency()

int painlessmesh::Connection::getLatency ( )

inline

Get average latency from recent samples Returns -1 if no samples available

getQuality()

int painlessmesh::Connection::getQuality ( )

inline

Calculate connection quality (0-100) Based on: latency, packet loss, RSSI

getRSSI()

int painlessmesh::Connection::getRSSI ( )

inline

Get WiFi RSSI if available Returns RSSI in dBm (typically -30 to -90) or 0 if not available

initTasks()

void painlessmesh::Connection::initTasks ( )

inline

onMessageReceived()

void painlessmesh::Connection::onMessageReceived ( size_t  bytes = 0 )

inline

Record message received timestamp and bytes

onMessageSent()

void painlessmesh::Connection::onMessageSent ( bool  success, size_t  bytes = 0  )

inline

Record message sent and bytes

recordLatency()

void painlessmesh::Connection::recordLatency ( uint32_t  latencyMs )

inline

Record round-trip time sample

shared_from_this()

std::shared_ptr< Connection > painlessmesh::Connection::shared_from_this ( )

inlineprotected

Member Data Documentation

bytesRx

uint64_t painlessmesh::Connection::bytesRx = 0

bytesTx

uint64_t painlessmesh::Connection::bytesTx = 0

latencySamples

std::vector<uint32_t> painlessmesh::Connection::latencySamples

MAX_LATENCY_SAMPLES

const size_t painlessmesh::Connection::MAX_LATENCY_SAMPLES = 10

static

mesh

Mesh<Connection>* painlessmesh::Connection::mesh

messagesDropped

uint32_t painlessmesh::Connection::messagesDropped = 0

messagesRx

uint32_t painlessmesh::Connection::messagesRx = 0

messagesTx

uint32_t painlessmesh::Connection::messagesTx = 0

newConnection

bool painlessmesh::Connection::newConnection = true

nodeSyncTask

Task painlessmesh::Connection::nodeSyncTask

station

bool painlessmesh::Connection::station = true

timeLastReceived

uint32_t painlessmesh::Connection::timeLastReceived = 0

timeOutTask

Task painlessmesh::Connection::timeOutTask

timeSyncTask

Task painlessmesh::Connection::timeSyncTask

---

The documentation for this class was generated from the following file:

• src/painlessmesh/mesh.hpp
